ERLA-Electrical Rotary & Linear Actuator for your underwater applications
The ERLA-Electrical Rotary & Linear Actuator is a servo rotary and linear actuator, designed for operations in demanding environments.
THRUST
Thrust capability : up to 80 kg
TORQUE & ROTATION SPEED
16 N.m (max) and 8 seconds for a complete rotation (360°)
DEPTH RATE
Immersion to 600 m max depth rate
ROBUSTNESS
Less maintenance, more reliability
The ERLA-Electrical Linear Actuator is an underwater actuator combining rotary motion and linear motion in a compact and robust format. Designed for subaquatic environments to a maximum of 600-meter depth rate, it offers precision thrust capability and real time position feedback.
The ERLA is versatile and modular. It integrates easily to underwater robots (ROV, AUV) or other platforms for a variety of applications: objects manipulation, sampling, structure adjustments or embedded tooling.
Like our robotic manipulator arm, the EMA 5F, the ERLA can be equipped with different tools as interchangeable jaws (T-bar, parallel, grabber, cutter, etc…). In this case, the linear motion allows opening or closing of the jaw, whereas the rotary motion allows to adjust the orientation.
ERLA is a modular solution which adapts to a number of applications, according to your specific needs.
Actuators designed to comply to your specific needs:
All industrial or underwater applications have specific technical requirements. It is why we develop customized solutions, in collaboration with your teams.
Our R&D department supports you step by step, from the analysis of your constraints to the design of customized actuators which perfectly fit your environment, your target performances and your integration constraints.
Customize your solution according to various criteria:
- Motion / rotation speed
- Applied thrust / torque
- Range
- Depth
- Connector type
- Mechanical termination
Do you have a specific need ? Let’s talk about it.
We build your ideal solution with you.
Features
- Designed for applications with large thrust where precision and motion / rotation control are needed.
- Position feedback in velocity and position mode.
- 1 connector available for add-on capacity (additional actuator, camera, projector…).
- With embedded electronic controller (no external POD required).
- Versatile and easy to integrate.
The ERLA integrates an embedded controller with:
- Programmable position or velocity commands
- Real time position feedback
- Smooth and precise control, even in extreme conditions
Modular connectivity
Its additional connector allows:
- Adding external equipment (camera, sensor, projector, sonar, etc…),
- Chaining other actuators (ELA, ERA, ERLA) to build interconnected and scalable systems.
Download our data sheets
Get all the technical specifications of our products in our detailed data sheets.
The different versions are presented with their specificities to help you make your choice.
Need help or customized guidance?
Our team is ready to answer your questions.
Easy to integrate
- Quick integration in various submersible systems,
- Ultra compact design with excellent power vs bulk ratio,
- Guidance available from our team.
Ideal for a large range of underwater applications, the ELA is the perfect subsystem:

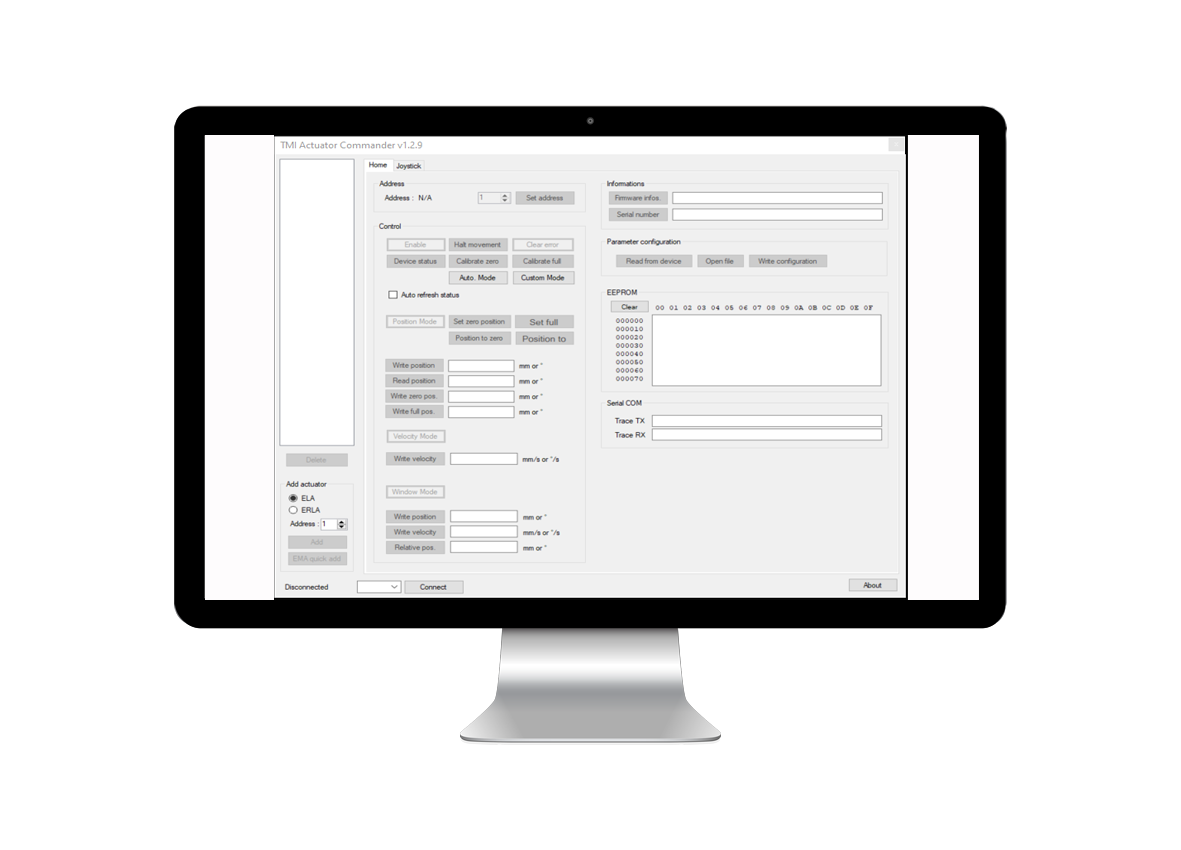

Actuator Commander Software
The ERLA comes with a remote-control software. This user-friendly software allows (Windows® compatible):
- simple setting,
- real time monitoring,
- quick diagnosis of the system.
